Load
Load 20 units directly into the machine. The hopper holds up to 140 units—no separate pre-gripper loading step required.
NU-TEC / FLAGSHIP EQUIPMENT
Precision coating.
Production scale.

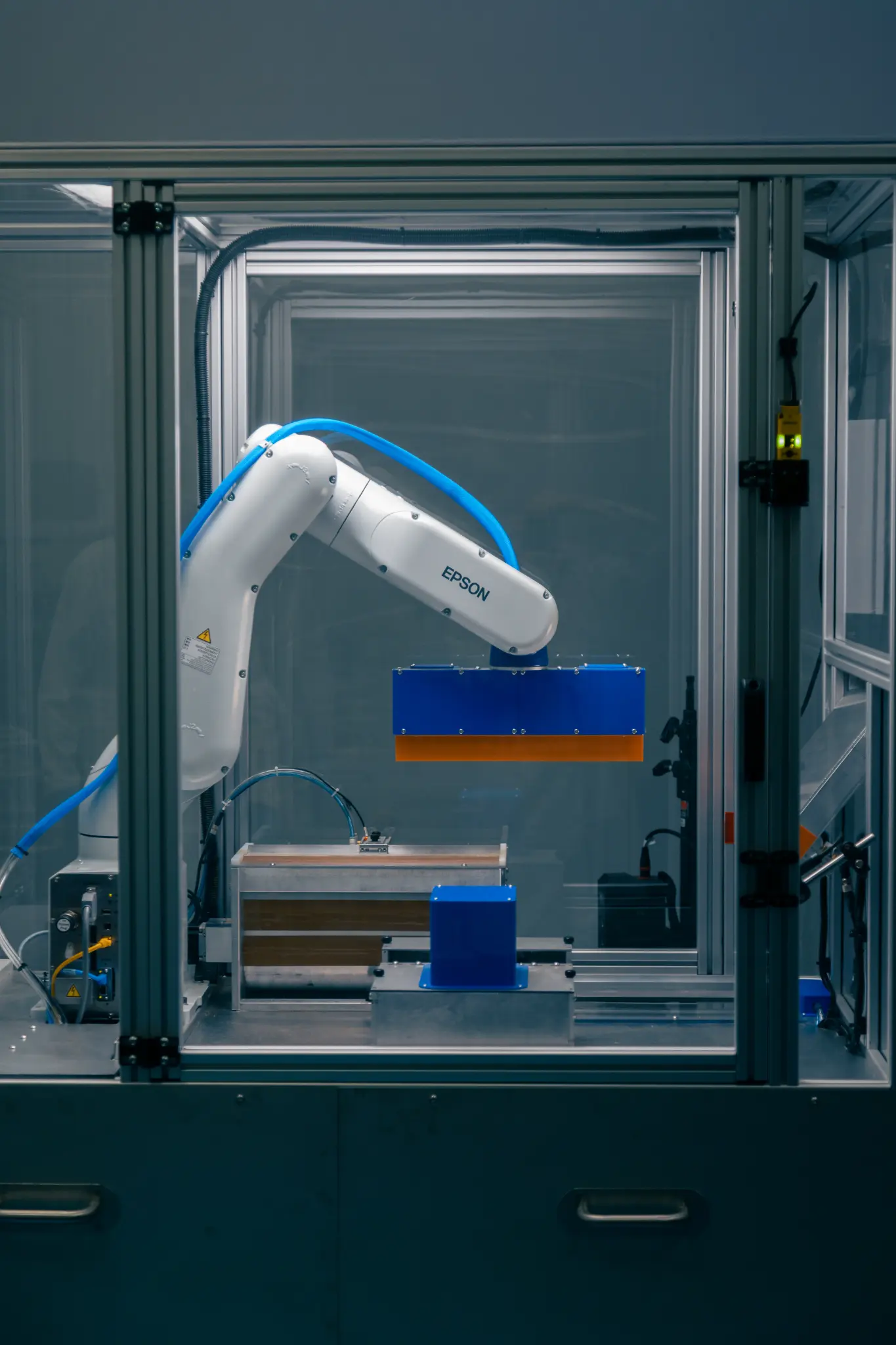

Meet the Nu-Tec Automated Coating Machine. Purpose-built robotic handling and rotational application bring consistency to every cycle.
01 / 03AUTOMATED COATING MACHINEUnmatched throughput.
Request pricing & detailsDownload the specification sheet Pricing available upon request. Performance varies by application.View a case study: cylindrical cookies
Unmatched throughput.
Consistent quality.
Apply food-grade adhesive and powdered or granular material to cylindrical objects up to 11mm in diameter. Process 20 units simultaneously—using just two operators.
3,000–3,300UNITS / HOUR
22.0sMINIMUM CYCLE TIME
360°
Even adhesive coverage
Controlled rotation helps create a full, even coating with a crisp adhesive cutoff line.
20
Units handled together
Purpose-built tooling picks up 20 units to a consistent depth in one motion.
20L
Extended adhesive capacity
A 20-litre vessel supports longer runs with fewer interruptions for refilling.
1,000
RPM / adjustable rotation
Variable speed and dip duration let operators tune the coating process.
FROM LOADING TO FINISHED PRODUCT
Four stations.
One controlled process.
Apply adhesive
The robotic arm moves all 20 units through a controlled adhesive spray while rotating each unit for even, 360° coverage.

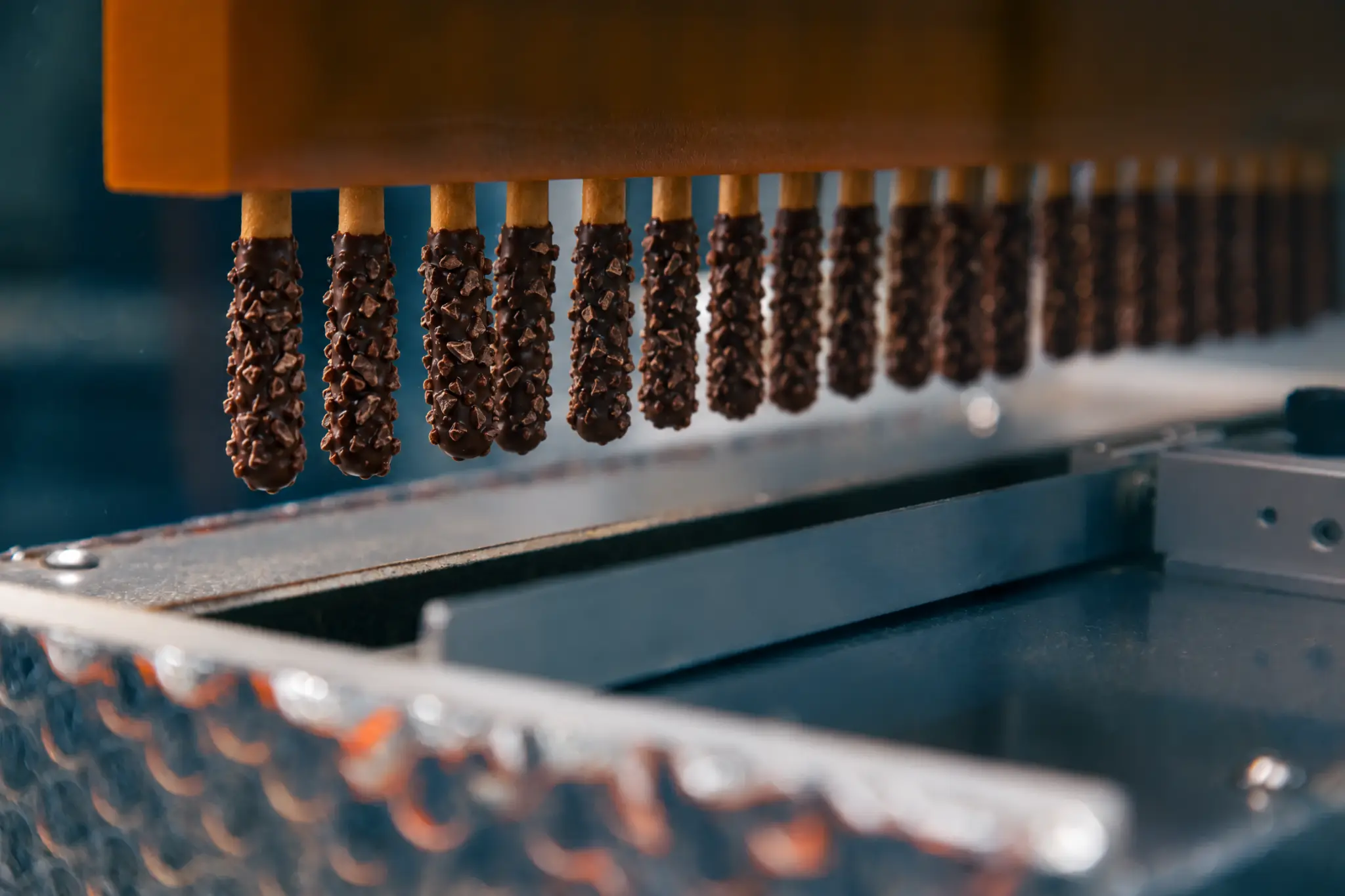

Apply coating
Units dip into the material while rotating at up to 1,000 RPM. Adjustable dip time and a clump-breaking mechanism support consistent distribution.
Collect
Finished units are ejected into a collection tray, ready for quality inspection and packaging.
THE DETAILS THAT MATTER
Technical specifications.
- Output capacity
- Up to 3,300 units/hour
- Units per cycle
- 20 pre-rolls
- Minimum cycle time
- 22.0 seconds
- Operators required
- 2
- Dimensions
- 35″ × 60″ × 80″
- Power requirements
- 120V AC · 60 Hz · 1-phase · 15A
- Compressed air
- 80–100 PSI
- Loading capacity
- Up to 140 units
- Adhesive vessel
- 20 litres
- Rotation speed
- Variable, up to 1,000 RPM
- Adhesive application weight
- 0.03–0.06g per unit*
- Coating application weight
- 0.04–0.08g per unit*
- Analytics platform
- Bradley-Allen PLC
- Pick-up failure rate
- <2% (units not wasted)
- Recommended coating moisture
- <12%
*Application-weight examples are based on a 2-inch unit with a 30% adhesive formulation. Actual throughput and coating results depend on the product, material and process settings. Specifications are subject to change without notice.
AVAILABLE ADD-ONSCartridge-based loading systemVision systemRemote-connect modem
GOOD QUESTIONS. CLEAR ANSWERS.
Get to know
the machine.
Have a product-specific question?
Let’s talk through your application.
What can the machine coat?
The machine applies food-grade adhesive and powdered or granular coating material to cylindrical objects up to 11mm in diameter, including pre-roll applications.
How is coating consistency maintained?
Consistent insertion depth, controlled rotation and pass speeds, and a clump-breaking coating station help deliver uniform treatment across each cycle.
What coating moisture level is recommended?
The specification sheet recommends less than 12% moisture, with under 10% ideal for coating performance.
Can coating weight be adjusted?
Yes. Coating weight can be influenced by adhesive quantity, the adhesive percentage in the formulation, and dip time in the coating station.
What do the application-weight ranges represent?
The published ranges are 0.03–0.06g of adhesive and 0.04–0.08g of coating material per unit. The specification sheet’s examples use a 2-inch unit and a 30% adhesive formulation. Results depend on your product, material and settings.
What options are available?
Available add-ons listed in the specification sheet include a cartridge-based alternative loading system, a vision system and a remote-connect modem. Discuss the right configuration for your application with Nu-Tec.
How do I get pricing?
Pricing is available on request. Use the inquiry form to share your product and production requirements, and request machine details or a quotation.
